Home > Products > Trailer Concrete Pump

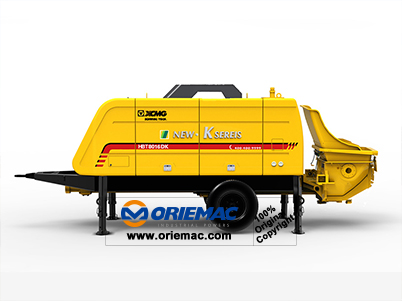

6.35ton Trailer Concrete Pump HBT8016KD



Quick Details

Feature: Trailer Concrete Pump

Condition: New

Application: Construction

Brand Name: XCMG

Model Number: HBT8016KD

Certification: ISO,CE

Max. total Weight: 6.35t

Concrete delivery pressure: 9/16Mpa

Dimension: 6558*2100*2966mm

Bucket capacity: 0.8m³

Concrete throughput: 82/50m³/h

Place of Origin: Jiangsu, China (Mainland)

Warranty: 1 year

Color: Yellow

After-sales Service Provided: Engineers available to service machinery overseas


Packaging & Delivery

Packaging Details:

Nude package Shipped by Ro-Ro or Bulk shipment

Delivery Detail:

7~15 days


Main Features

1. More excellent performance
2. More reliable quality
3. Easier to operate
4. Easier to maintain
5. More energy-efficient and environmental friendly

Technical Parameters

Dimension

Unit

HBT8016KD

Overall length

mm

6558

Overall width

mm

2100

Overall height

mm

2966

Weight





Max. total weight

kg

6350

Chassis parameters





Engine model




Engine rated power

kW

132

Engine speed

r/min

1480

Main performance





Concrete throughput (low / high pressure)

m³/h

82/50

Concrete delivery pressure (low / high pressure)

Mpa

9/16

S valve commutation number (low / high pressure)

times/min

19±1/11±1

Transport cylinder inner diameter*stroke

mm

Φ230*1600

Bucket capacity

0.8

Main oil pump discharge

ml/r

280

Hydraulic tank volume

L

600
